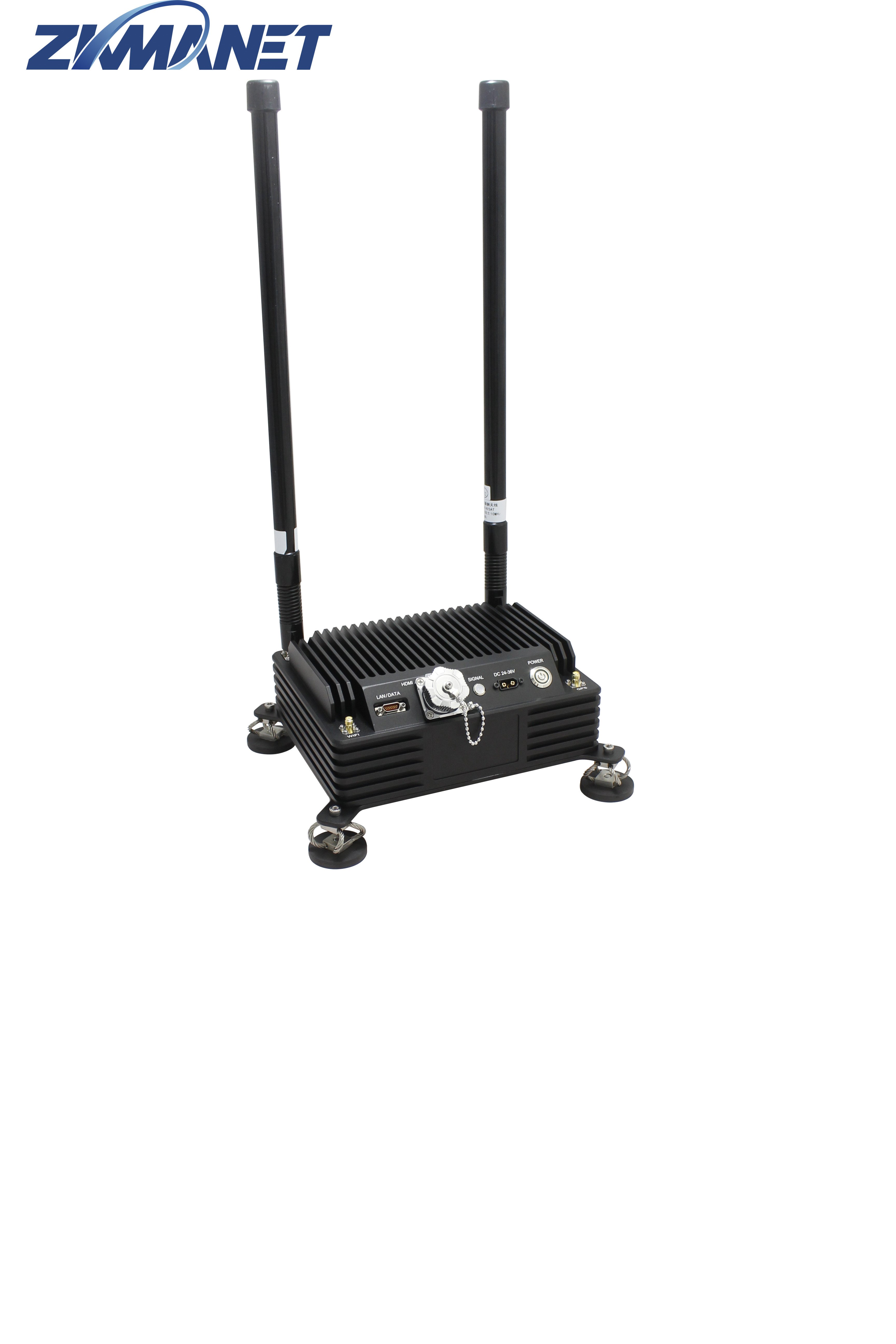

MIMO MESH Smart IP Manet Radio Ad Hoc Network Ground Station Radio
ZKManet3371 is a high-power radio utilizing an FPGA solution, supporting adaptive frequency hopping and selection. It has the capability to automatically select the optimal frequency in the presence of electromagnetic interference, enabling broadband service transmission in complex scenarios through self-organizing networks. The device is designed with professional shock absorption features, making it easy to install on vehicles, ships, and aircraft. It can be easily powered on with a single button press, without the need for configuration or parameter changes.
* Data rate up to 56Mbps
* Supports two-way voice intercom
* Supports WIFI
* Supports GPS/BD
* Supports HDMI input
* Supports IP data transparent transmission
* Easy operation
| RF Parameters |
| Default Frequencies | 1300-1500MHz (70MHz-6GHz customizable) |
| Channel Bandwidth | 2.5M/5M/10M (20MHz/40MHz optional) |
| RF Waveform | TDD-COFDM + 2T2R |
| Output Power | 43dBm (43dBm) |
| Receive Sensitivity | -100dBm@2.5MHz |
| Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS | Optional (>1000 hop/s) |
| Intelligent Frequency Slection | Optional |
| Network Parameters |
| Network Size | 10 nodes(Customizable) |
| Multi-hop Capability | 15 hops (short message); 10 hops (voice); 8 hops (video) |
| Range | Long distance customizable |
| Data rate | Up to 28Mbps@10MHz & 56Mbps@20MHz |
| Delay | 7ms@2.5MHz/hop |
| Movement Speed | >1000km/h |
| Start Time | 27s |
| Positioning | GPS/BD |
| Network Access Time | <1s |
| Network Extension | WIFI AP |
| Physical/Environment |
| Weight | 3.5kg (w/o Antenna) |
| Dimensions | 220*180*85mm |
| IP Rating | IP66 |
| Working Temp. | -40°C~70°C |
| Electrical Parameters |
| Working Voltage | 24-36VDC |
| Power Consumption | ≤937dBm |
| Interface |
| LAN Interface | *1 |
| RS232 Interface | *1 |
| Video Interface | HDMI*1 |
Dimensions

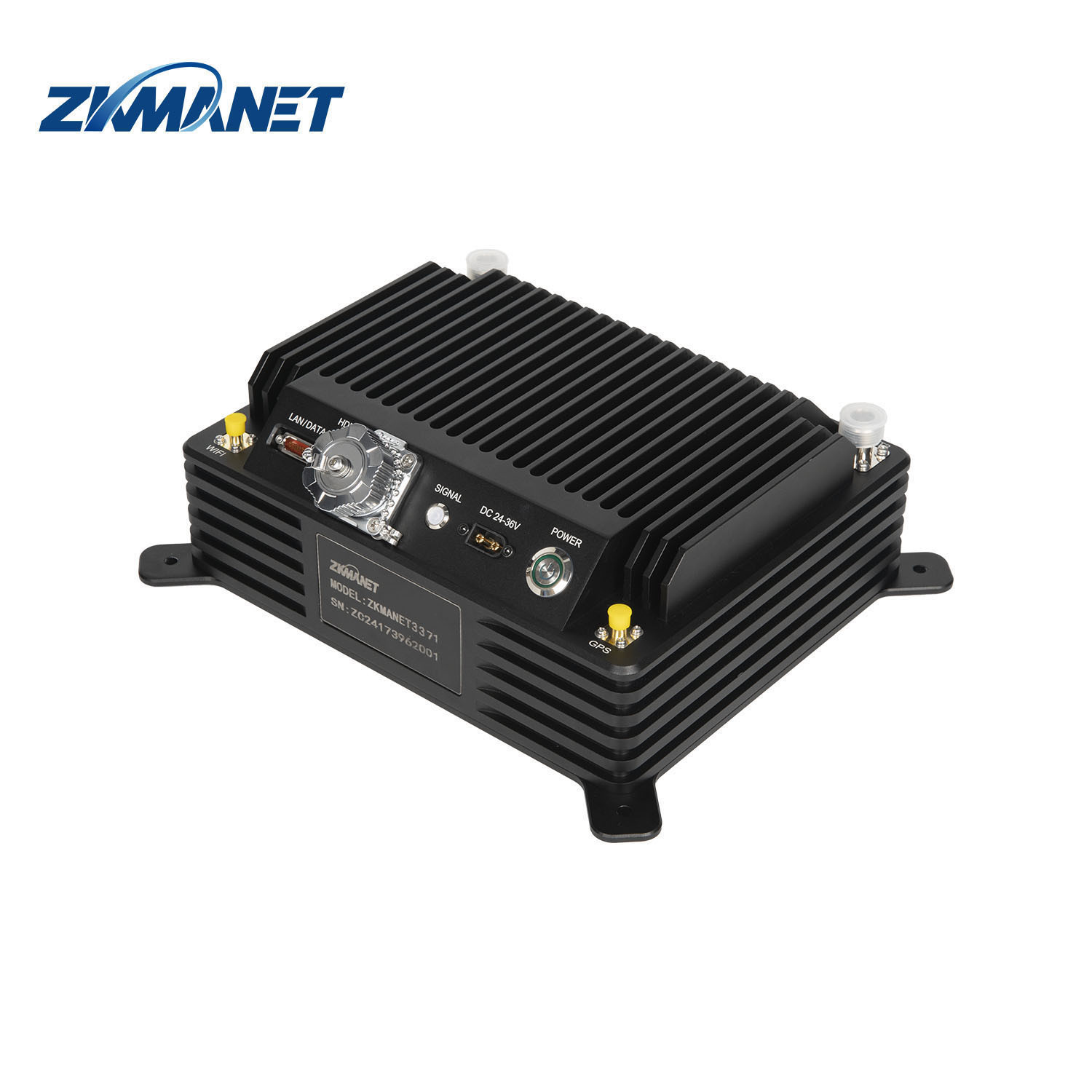

Panal Description
1. WIFI antenna interface
2. LAN/DATA Interface
3. HDMI Interface
4. MESH signal indicator
5. Power input port
6. Power push button
7. GPS antenna interface
8. MESH antenna Interface -1
9. MESH antenna Interface -2
Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise founded in 2005.We are located in Shenzhen,the most fast-growing city of China.Our products mainly use FPGA,Mesh,COFDM and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime.
